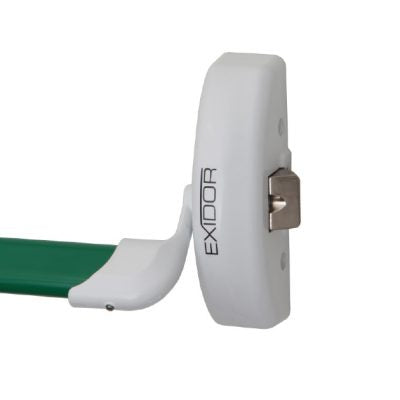

Exidor 501-B push bar panic latch

• * Unit type: Panic unit
• * Activation: Push bar
• * Door type: Single doorset, Rebated double doorset, active leaf
• * Door opening: Outward
• * Projection: 92mm from door face
• * Mounting method: Surface-mounted bar
• * No. of locking points: 1
• * Bolt style: Latch
• * Durability: 200,000 cycles
• * Max door width: 1220mm, bar can be cut to size on site
• * Max door mass: Up to 200kg
• * Operation: Pushing the bar down into door face retracts the latch.
• * Releasing the bar returns the latch to the rest position
• * Finish: SIL or SSE (other finishes on request)
• * Accessories: See panic hardware accessory section for range of alternative keeps
• * Suitable for fire doors: Timber FD120, metal FD240

View ->'Exidor Brochure'
