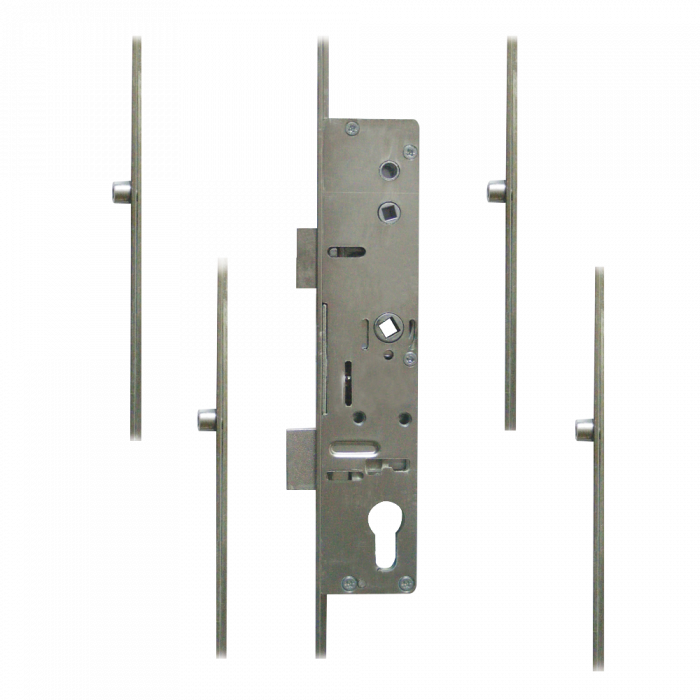

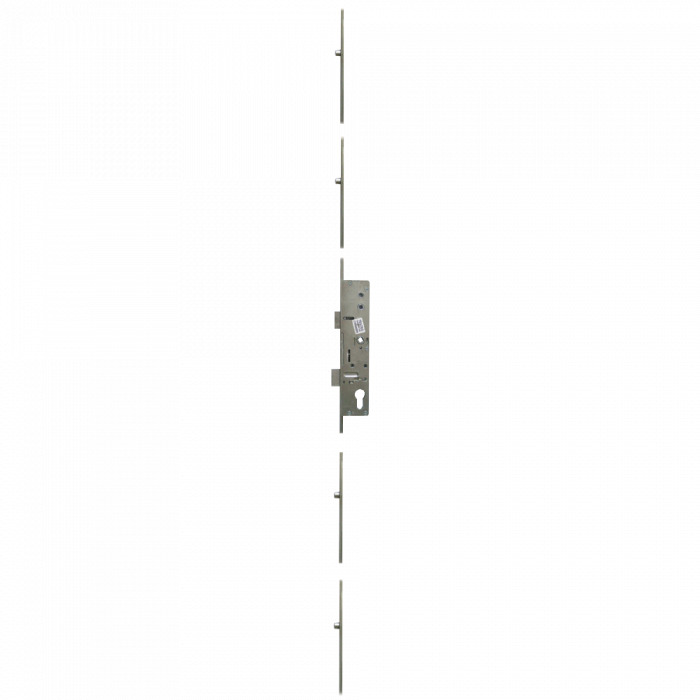

LOCKMASTER Lever Operated Latch & Deadbolt Single Spindle - 4 Roller
SKU: MpL24377
LOCKMASTER Lever Operated Latch & Deadbolt Single Spindle - 4 Roller
SKU: MpL24377
- Lockmaster Latch & Deadbolt Multipoint Lock
- Single spindle and 4 rollers.
- 35mm Backset & 92mm Centres
- Euro Profile Lock Case
- 16mm Faceplate
| Spindle | Single |
| Operation | A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock. |
| Brand | Lockmaster |
| Barcode | 5055120759579 |
| Backset | 35mm |
| Case Height | 228mm |
| Centres | 92mm & 62mm |
| Centre Case | Latch & Deadbolt |
| Case Width | 47mm |
| Weight | 1.5Kg |
| Locking Point Distance D | 780mm |
| Locking Point Distance C | 710mm |
| Locking Point Distance B | 425mm |
| Locking Point Distance A | 350mm |
| Locking Point Roller | 4 |
| Manufacturer Reference | 41010 |
| Faceplate Width | 16mm |
